Part 2: Create Nodes

Introduction

Time to get started with implementing the core part of a source plugin!

Gatsby exposes many Gatsby Node APIs (some people also refer to such APIs as “hooks”) that allow anyone, including source plugins, to hook into Gatsby’s build process. You can create pages, modify the bundler configuration, or in the case of a source plugin add data to Gatsby’s GraphQL data layer.

In this part of the tutorial, you’ll learn how to use the sourceNodes Node API.

By the end of this part of the tutorial, you will be able to:

• Fetch data from an external backend API
• Insert that data into Gatsby’s GraphQL data layer
• Display your results inside a Gatsby site

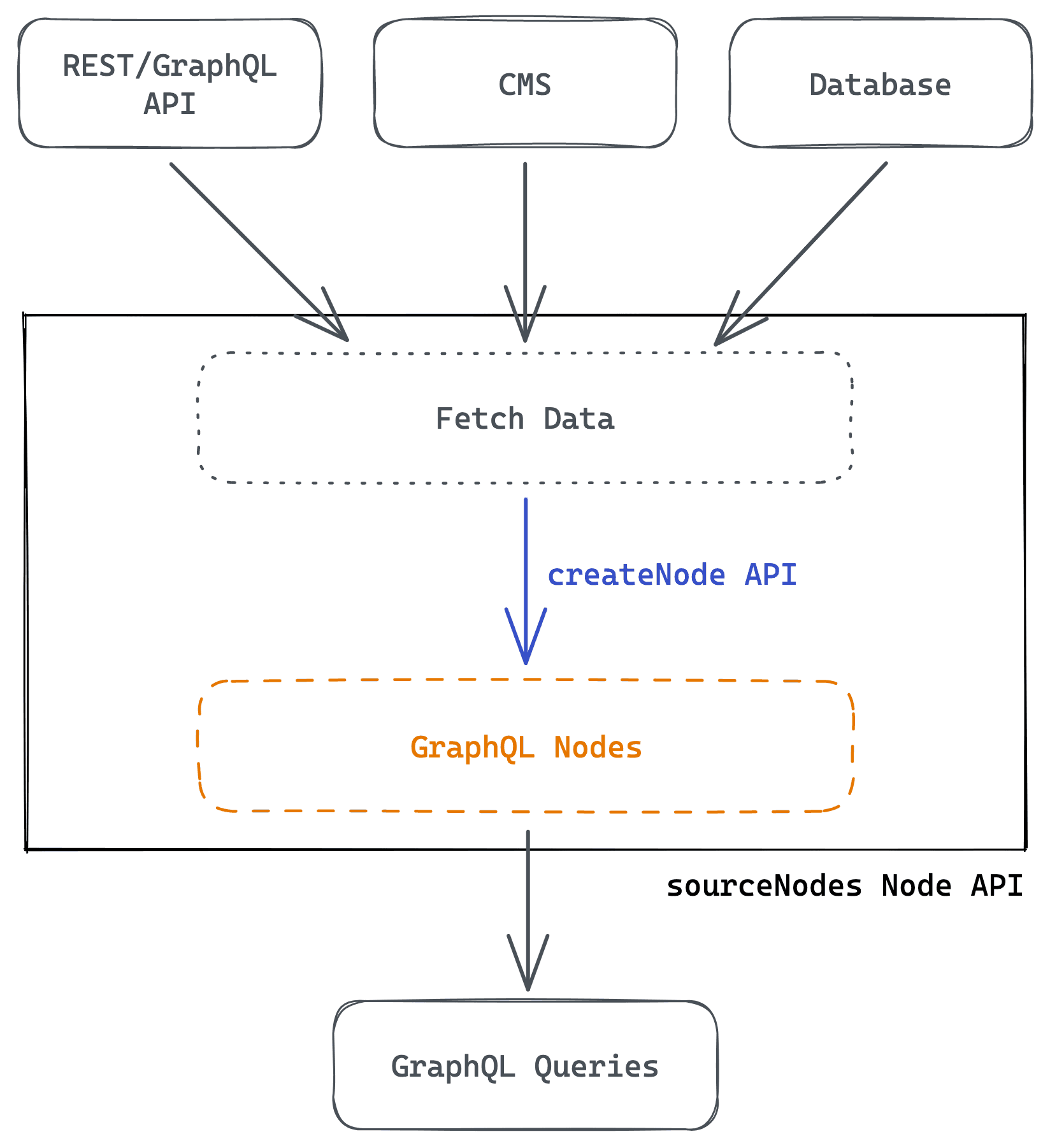

The diagram below shows a high-level view of how a Gatsby source plugin works. (Don’t worry if this doesn’t make sense yet. You’ll learn about each step as you go.)

Source data from an API

Before making changes to your plugin, double check that you’re running the develop:deps script in your terminal (or more general: That you’re recompiling your plugin on changes). Otherwise you’ll wonder why you don’t see your changes reflected in your example site (don’t ask how we know).

Add sourceNodes lifecycle

Create a new file called source-nodes.ts inside the plugin’s src folder with a named sourceNodes export:

You’re importing the TypeScript type GatsbyNode from gatsby. The GatsbyNode type is a representation of all available Gatsby Node APIs and you can access each type with bracket notation. For example, you can get the TypeScript type for the onPluginInit API like this: GatsbyNode[`onPluginInit`].

Each Gatsby Node API receives its available Node API helpers as its first parameter. The second parameter to the function is the plugin’s options.

In the example above you’re adding a log to the terminal output for initial testing purposes. You’ll learn more about plugin options and the reporter API in Part 4.

Next, add the sourceNodes export to the plugin’s gatsby-node.ts. Gatsby checks for named exports in gatsby-node file, and only when those are given it runs the different Node APIs.

In a second terminal window run (or restart if it’s still running) the develop:site script:

You should see the new log info Example plugin sourceNodes... printed to the terminal.

Fetch data

After learning how to add the sourceNodes API to your plugin, it’s time to do more than just outputting a message.

Open the source-nodes.ts file, remove the previous reporter usage, and import the fetchGraphQL utility. You’ll use it to make requests against the example GraphQL API and it returns an object containing data and errors (you’ll only use data for now).

The first argument to fetchGraphQL is the endpoint, the second argument is the GraphQL query you want to make against the API.

For this tutorial you’ll be querying the Post and Author entities from the example API. You can see the query for that in the next step.

Add the GraphQL query to the second parameter of fetchGraphQL and add the correct TypeScript types:

To see if you can successfully source the data from the API, console.dir the data result:

Restart the develop:site script and if everything worked correctly, you should see something like this in your terminal output:

This means that you can successfully access data from the example API! Gatsby is smart enough to notice that you run a plugin with a sourceNodes API but that it doesn’t generate any nodes. That’s why the warning is showing up. You’ll fix this in the next step.

Create GraphQL nodes

Before immediately diving into the node creation process, let’s take a step back and ask yourself: What do you want to create from data inside Gatsby? Within the context of this tutorial, that question is simpler to answer — nodes of type Post and Author — but this won’t be the case for every API you’ll work with. While inspecting the data that is available, you’ll want to think of how to assemble different node types and the relationships they have to one another. It helps to write this down, outside of code, in plain English or even a diagram. Only after doing that should you start writing the code. For instance, while it’s not the API you’ll be working with in this tutorial, here’s an example of an API where you’ll need to think about fitting node types:

• You’re requesting the REST API endpoint called /authors and it gives you back a list of authors, each with a unique ID. However, this API response doesn’t contain the details for each author, instead you’re supposed to call /author/<author-id> to request additional information.
• The strict 1:1 mapping of API endpoints to node types would mean you’d have Author and AuthorDetail
• However, you shouldn’t create Author and AuthorDetail node types but instead only a Author one. While creating the Author one, access the information from the author detail endpoint and enrich the Author information.

createNode

Besides fetching of the actual data, the creation of nodes is another important piece to a source plugin.

A basic usage of createNode looks like this:

Once the sourceNodes API with its createNode call is run one is able to query the TypeName type with a hello key:

Task: Define constants

Since you’ll need to use the name of your node types in a couple of places, it’s easy to introduce typos while using them. Create a constants.ts file to define your names once and reuse them everywhere. This way you can also more easily change the names after the fact. Neat!

Add the following to your new constants.ts file:

For the next step you’ll also need some additional TypeScript types, so go ahead and add the following to the types.ts file:

You’re setting up Discriminated Unions here which will be used as the input type for the nodeBuilder utility. It ensures that e.g. with type: "Author" only the data in the shape of IAuthorInput can be passed in.

Task: Create nodeBuilder utility

You’ll create a utility function called nodeBuilder. Its purpose is to take in data, mutate it (if necessary), and then call createNode for each node type with its respective data. You’re then calling nodeBuilder for each of your entries from the API response, filling Gatsby’s data store with the data from the example API.

Now that you know how a barebones version of createNode works, DRY (acronym for “Do not repeat yourself”) things up by creating the nodeBuilder function inside source-nodes.ts.

1. Import the SourceNodesArgs and NodeInput type from gatsby and the NodeBuilderInput type from types.ts. Also import the NODE_TYPES constants you just created:

   TypeScript tip: The gatsbyApi that a Gatsby Node API receives isn’t always the same on each Node API. Therefore types in the naming scheme “Node API name” (in PascalCase) + “Args” exist, e.g. sourceNodes => SourceNodesArgs, createSchemaCustomization => CreateSchemaCustomizationArgs. Those utility TypeScript types are helpful when passing gatsbyApi or parts of it to another function.

2. Apply the same logic as the barebones createNode example to the nodeBuilder function:

   • Generate a unique id, dependent on the input.type and id from input.data
   • Fill out the necessary fields on the node (as explained in “Explanation on each required node field” above)
   • Add your arbitrary data (in this case ...input.data)
   • Call createNode

   Great, you wrote a reusable helper function to create nodes! Now it’s time to put it to use.

   Pro tip: If your incoming data has keys that clash with fields reserved by Gatsby (in this example id), you can prefix those fields to still make them available. So the id coming from the example API will be available at _id. You don’t have to use a _ prefix, you can choose whatever you want (but we’d recommend keeping things consistent).

   TypeScript tip: You can use the satisfies operator to check against a desired shape while inferring the most specific type possible.

3. Scroll up in source-nodes.ts to the place where you’re calling console.dir() and remove that log. Replace it with a destructuring assignment of data to get the posts and authors results out of it (you can also set an empty array as a default value):

   So both posts and authors are arrays of objects that you should iterate over. And each individual post and author will become a Gatsby node when you iterate over both arrays and call nodeBuilder inside the loops:

Hopefully you can see the benefit of creating a helper function: You don’t have to repeat yourself inside the loops, making the code for sourcing data and creating nodes more readable, concise, and clear.

Display results in your site

You’ve created GraphQL nodes from your data — time to also display them in your site!

Restart the develop:site script in your terminal. Once the development server is running, go to Gatsby’s GraphiQL IDE at http://localhost:8000/___graphql (Need a refresher? Read the introduction to GraphiQL).

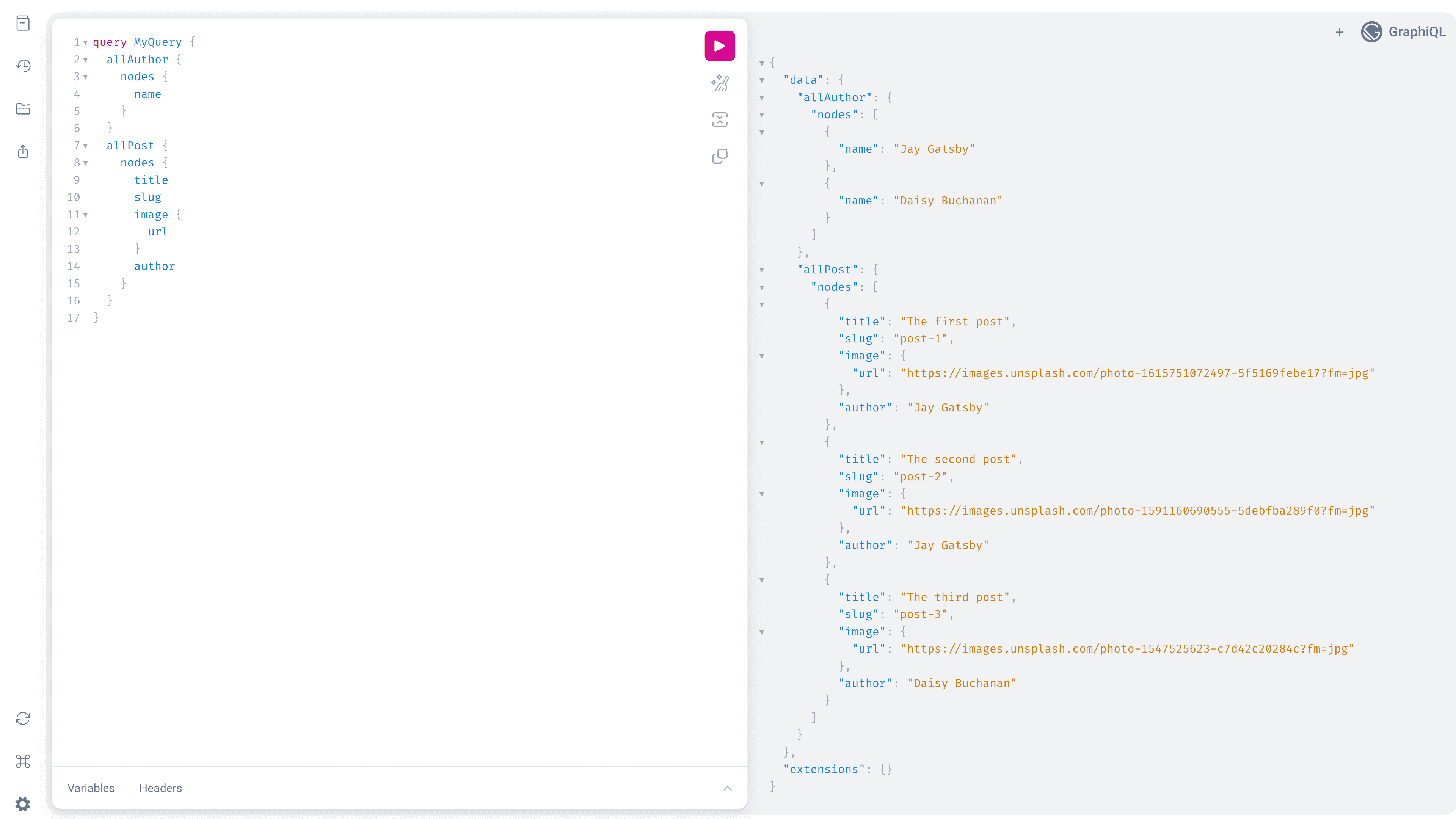

Inside GraphiQL, try a query against your newly created Author and Post nodes, for example:

You should see this result in your browser:

Great, you’ve successfully queried your data in a Gatsby site! As the last step of this part of the tutorial, you’ll create pages from all available posts as well as display them on the index page.

First, edit the index page to display all posts and link to their individual pages (which you’ll create in just a second):

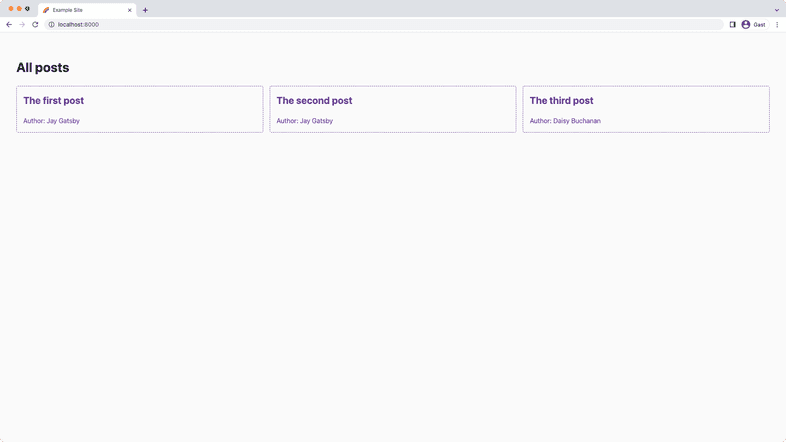

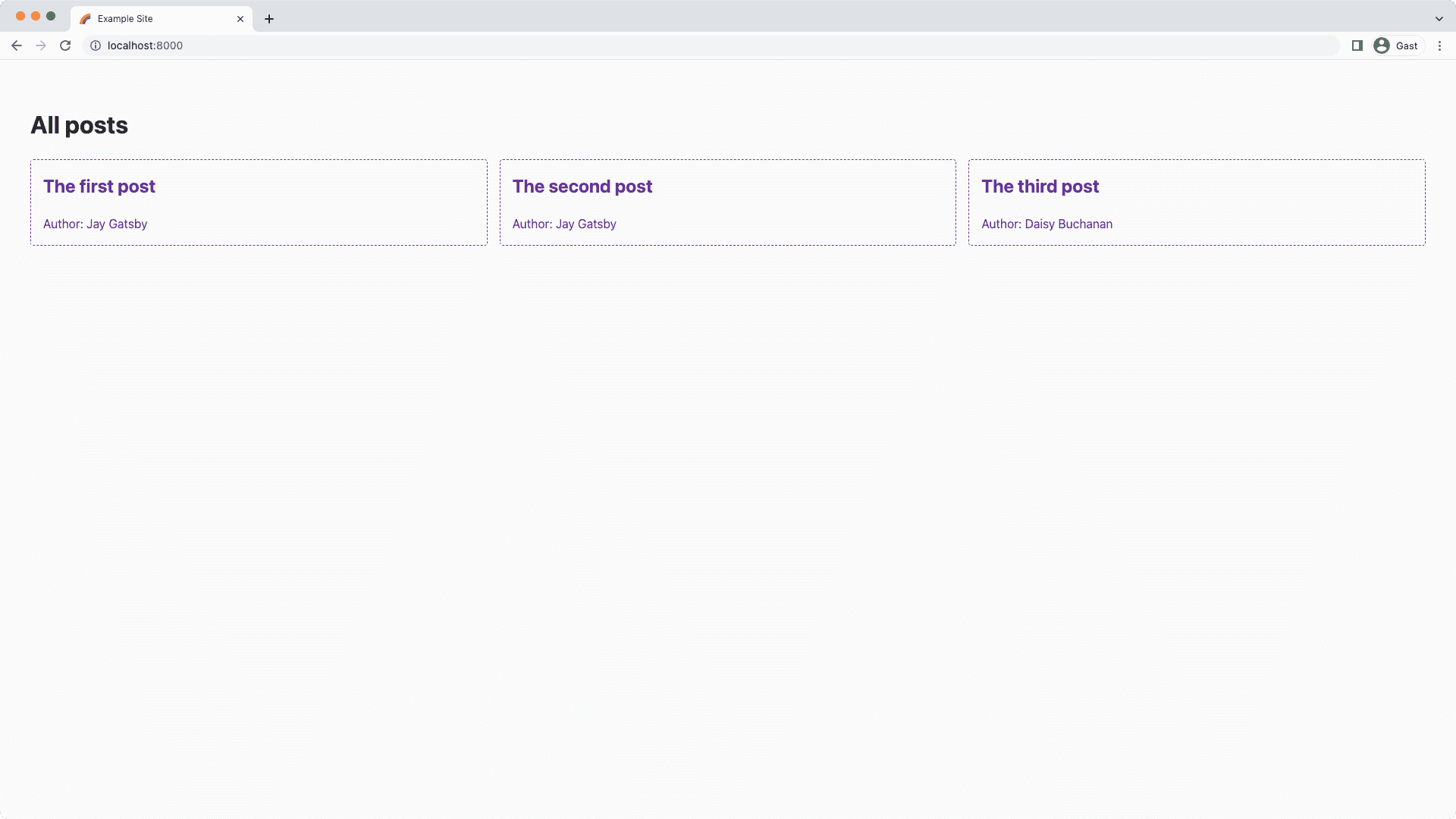

If you go back to your browser and navigate to http://localhost:8000, your index page should look like this:

To add the individual pages that the cards link to, create a new file called {Post.slug}.tsx inside site/src/pages with the following contents:

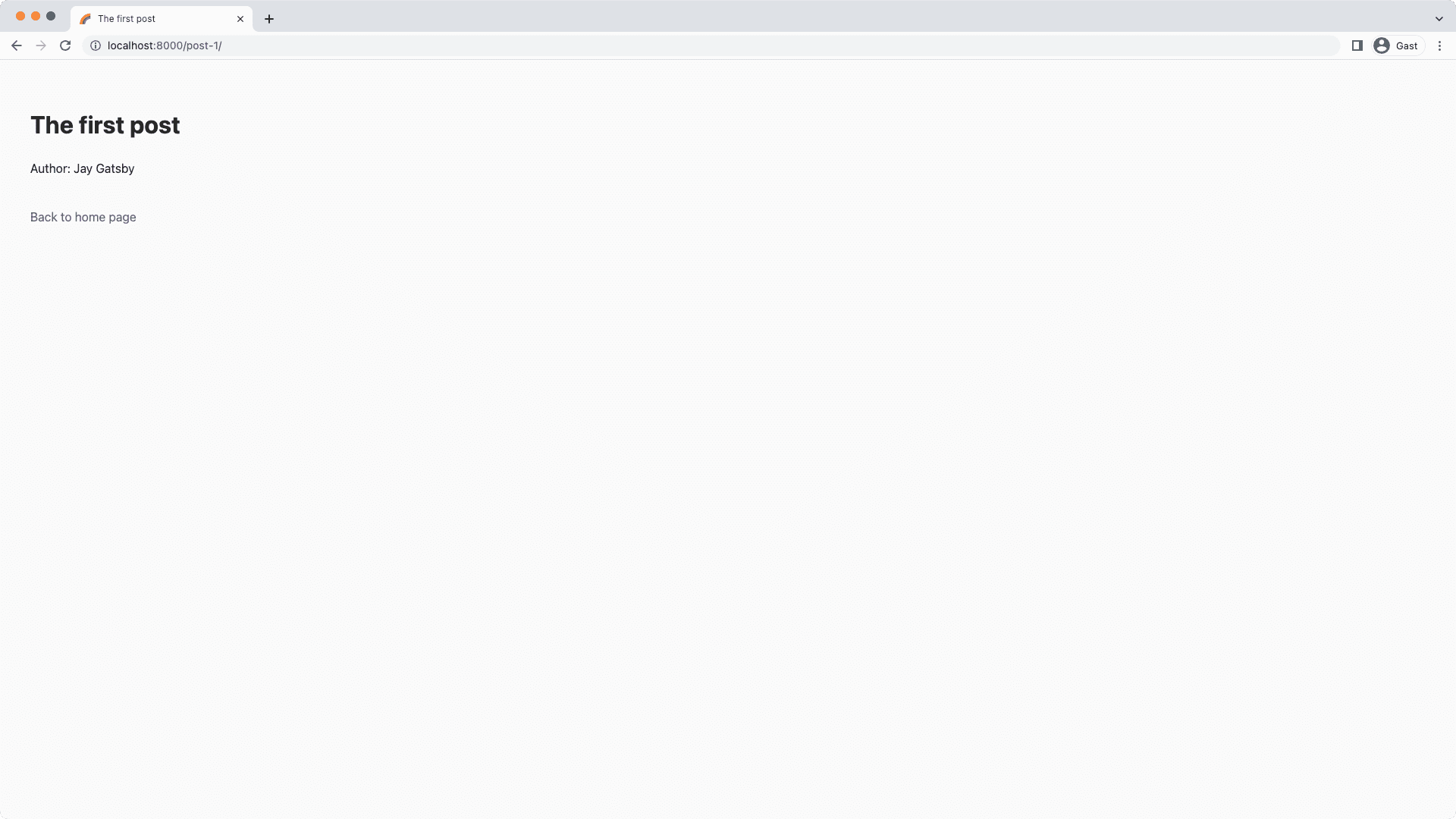

If you now click on one of the cards, e.g. the “The first post” card you should be linked to http://localhost:8000/post-1/ and see the individual post:

Summary

Good job! You’ve finished the most important part of creating a source plugin.

Take a moment to think back on what you’ve learned so far. Challenge yourself to answer the following questions from memory:

• Which Gatsby Node API is the appropriate one to add data to Gatsby’s data layer?
• How do you fetch data from a remote API?
• What is the purpose of createNode?
• How do you create GraphQL nodes from your data?

As a quick review, here’s the diagram outlining the process:

Key takeaways

• Source plugins pull data from their original location into Gatsby’s GraphQL data layer through the sourceNodes Node API.
• When creating nodes with createNode you’ll need to think about reserved and required fields, modifying your incoming data if necessary.
• You can create a utility function around createNode to more efficiently create nodes.
• You can use your example site to immediately test out if your source plugin works correctly.

What’s coming next?

In Part 3, you’ll explicitly define the GraphQL schema of your source plugin and create a foreign-key relationship between the Post and Author node types.
