GraphQL Concepts

There are many options for loading data into React components. One of the most popular and powerful of these is a technology called GraphQL.

GraphQL was invented at Facebook to help product engineers pull needed data into React components.

GraphQL is a query language (the QL part of its name). If you’re familiar with SQL, it works in a very similar way. Using a special syntax, you describe the data you want in your component and then that data is given to you.

Gatsby uses GraphQL to enable page and static query queries to declare what data they and their sub-components need. Then, Gatsby makes that data available in the browser when needed by your components.

Data from any number of sources is made queryable in one unified layer, a key part of the Gatsby building process:

GraphQL Response

data: {
  site: {
    title: "Home"
    description: "Gatsby tips"
  }
}

Data returned by GraphQL comes back in the exact same shape that you asked for it, without having to travel across the network because it was already gathered at build time.

Since all data is combined in the data layer, it’s even possible to query multiple sources at the same time.

Why is GraphQL so cool?

For a more in-depth look, read why Gatsby uses GraphQL.

Eliminate frontend data boilerplate — no need to worry about requesting & waiting for data. Just ask for the data you need with a GraphQL query and it’ll show up when you need it
Push frontend complexity into queries — many data transformations can be done at build-time within your GraphQL queries
It’s the perfect data querying language for the often complex/nested data dependencies of modern applications
Improve performance by removing data bloat — GraphQL enables you to select only the data you need, not whatever an API returns

What does a GraphQL query look like?

GraphQL lets you ask for the exact data you need. Queries look like JSON:

Which returns this:

A basic page component with a GraphQL query might look like this:

The result of the query is automatically inserted into your React component on the data prop. GraphQL and Gatsby let you ask for data and then immediately start using it.

Note: To run GraphQL queries in non-page components you’ll need to use Gatsby’s Static Query feature.

Understanding the parts of a query

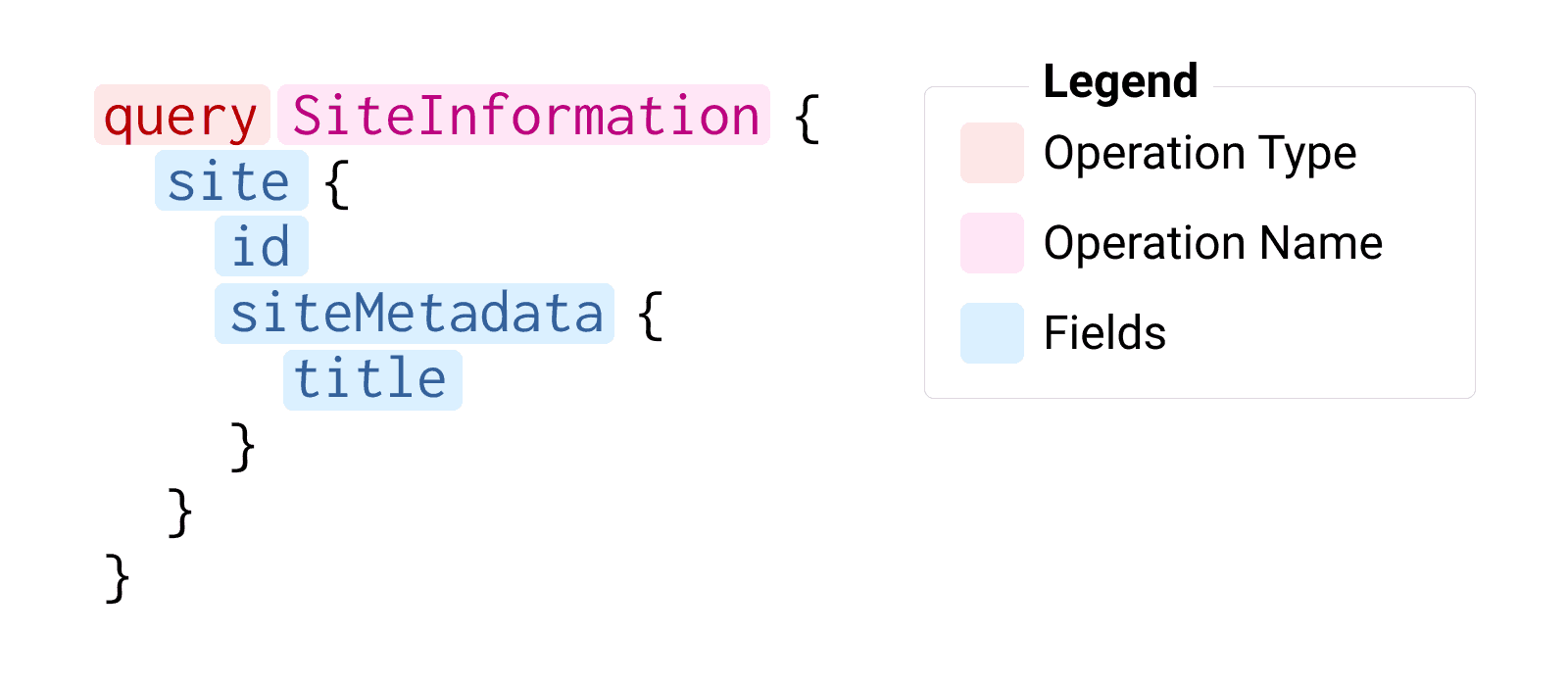

The following diagram shows a GraphQL query, with each word highlighted in a color corresponding to its name on the legend:

Query operation type

The diagram marks the word query as the “Operation Type”, for Gatsby’s uses the only operation type you will deal with is query, this can be omitted from your queries if you prefer (like in the above example).

Operation name

SiteInformation is marked as the “Operation Name”, which is a unique name that you assign to a query yourself. This is similar to how you would name a function or a variable, and like a function this can be omitted if you would rather the query be anonymous.

Query fields

The four words site, id, siteMetadata, and title are marked as “Fields”. Any top-level fields — like site in the diagram — are sometimes referred to as root level fields, though the name doesn’t signify functional significance as all fields in GraphQL queries behave the same.

How to learn GraphQL

Your experience developing with Gatsby might be the first time you’ve seen GraphQL! We hope you love it as much as we do and find it useful for all your projects.

When starting out with GraphQL, we recommend the following two tutorials:

The official Gatsby tutorial also includes an introduction to using GraphQL specifically with Gatsby.

How do GraphQL and Gatsby work together?

One of the great things about GraphQL is how flexible it is. People use GraphQL with many different programming languages and for web and native apps.

Most people run GraphQL on a server to respond live to requests for data from clients. You define a schema (a schema is a formal way of describing the shape of your data) for your GraphQL server and then your GraphQL resolvers retrieve data from databases and/or other APIs.

Gatsby uses GraphQL at build-time and not for live sites. This is unique, and it means you don’t need to run additional services (e.g. a database and Node.js service) to use GraphQL for production websites.

Gatsby is a great framework for building apps so it’s possible and encouraged to pair Gatsby’s native build-time GraphQL with GraphQL queries running against a live GraphQL server from the browser.

Where does Gatsby’s GraphQL schema come from?

Most usages of GraphQL involve manually creating a GraphQL schema.

Gatsby uses plugins which can fetch data from different sources. That data is used to automatically infer a GraphQL schema.

If you give Gatsby data that looks like this:

Gatsby will create a schema that looks something like this:

This makes it possible to pull data from anywhere and immediately start writing GraphQL queries against your data.

This can cause confusion as some data sources allow you to define a schema even when there’s not any data added for parts or all of the schema. If parts of the data haven’t been added, then those parts of the schema might not be recreated in Gatsby.

Powerful data transformations

GraphQL enables another unique feature of Gatsby — it lets you control data transformations with arguments to your queries. Some examples follow.

Formatting dates

People often store dates like “2018-01-05” but want to display the date in some other form like “January 5th, 2018”. One way of doing this is to load a date-formatting JavaScript library into the browser. Or, with Gatsby’s GraphQL layer, you can do the formatting at query-time like:

See the full list of formatting options by viewing our GraphQL reference page.

Markdown

Gatsby has transformer plugins which can transform data from one form to another. A common example is markdown. If you install gatsby-transformer-remark, then in your queries, you can specify if you want the transformed HTML version instead of markdown:

Images

Gatsby has rich support for processing images. Responsive images are a big part of the modern web and typically involve creating 5+ sized thumbnails per photo. With Gatsby’s gatsby-transformer-sharp, you can query your images for responsive versions. The query automatically creates all the needed responsive thumbnails and returns src and srcSet fields to add to your image element.

Combined with a special Gatsby image component, gatsby-plugin-image, you have a very powerful set of primitives for building sites with images.

This is what a component using gatsby-plugin-image looks like:

Advanced

Fragments

Fragments let you construct sets of fields, and then include them in queries where you need to. You can learn more about them in the GraphQL documentation.

If you wish to define your own fragments for use in your application, you can use named exports to export them in any JavaScript file, and they will be automatically processed by Gatsby for use in your GraphQL queries.

For example, if I put a fragment in a helper component, I can use that fragment in any other query:

They can then be used in any GraphQL query after that!

It’s good practice for your helper components to define and export a fragment for the data they need. For example, on your index page you might map over all of your posts to show them in a list.

If the index component becomes too large, you might want to refactor it into smaller components.

Now, you can use the component together with the exported fragment in your index page.
